Pathway Description
Protein Synthesis: Serine
Homo sapiens
Protein Pathway

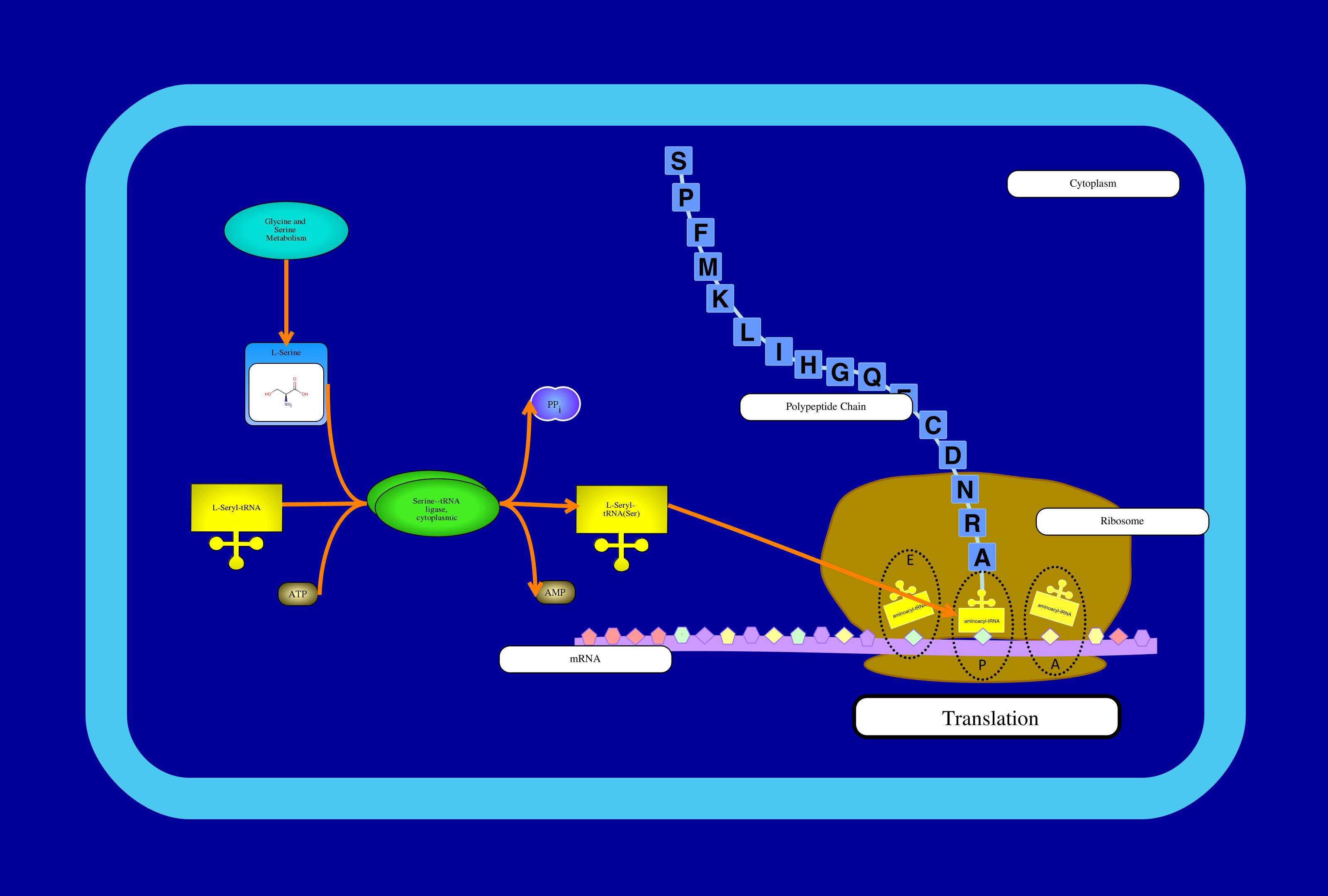

Protein synthesis is an essential life process that builds the important large amino acid macromolecules that function as enzymes, antibodies, and cellular structural components. Although synthesis begins with the transcription of DNA into RNA, this pathway depicts the reactions that occur during translation. Transcribed messenger RNA (mRNA), which contains the genetic code to direct protein synthesis, is transported out of the nucleus and becomes bound to ribosomes in the cytoplasm or endoplasmic reticulum. The amino acids required to assemble polypeptide chains are delivered to the ribosomes using transfer RNA (tRNA). Each tRNA molecule has both a binding site for a specific amino acid and a three-nucleotide sequence called the anticodon that forms three complementary base pairs with an mRNA codon. Charging or loading the appropriate amino acid onto its tRNA is carried out by an aminoacyl-tRNA synthetase (aaRS or ARS), also called tRNA-ligase. This enzyme catalyzes the esterification of an amino acid to one of all its compatible tRNAs to form an aminoacyl-tRNA. Each of the twenty amino acids has a corresponding aa-tRNA made by a specific aminoacyl-tRNA synthetase. Ribosomes match the anticodons of the charged tRNA molecules with successive codons of the mRNA. After a match is found, the ribosome transfers the amino acid from the matching tRNA onto the growing peptide chain via a reaction termed peptide condensation, and the tRNAs, no longer carrying amino acids, are released.
References
Protein Synthesis: Serine References
Vincent C, Tarbouriech N, Hartlein M: Genomic organization, cDNA sequence, bacterial expression, and purification of human seryl-tRNA synthase. Eur J Biochem. 1997 Nov 15;250(1):77-84.
Pubmed: 9431993
Odintsova TI, Muller EC, Ivanov AV, Egorov TA, Bienert R, Vladimirov SN, Kostka S, Otto A, Wittmann-Liebold B, Karpova GG: Characterization and analysis of posttranslational modifications of the human large cytoplasmic ribosomal subunit proteins by mass spectrometry and Edman sequencing. J Protein Chem. 2003 Apr;22(3):249-58.
Pubmed: 12962325
Vladimirov SN, Ivanov AV, Karpova GG, Musolyamov AK, Egorov TA, Thiede B, Wittmann-Liebold B, Otto A: Characterization of the human small-ribosomal-subunit proteins by N-terminal and internal sequencing, and mass spectrometry. Eur J Biochem. 1996 Jul 1;239(1):144-9.
Pubmed: 8706699
