Pathway Description

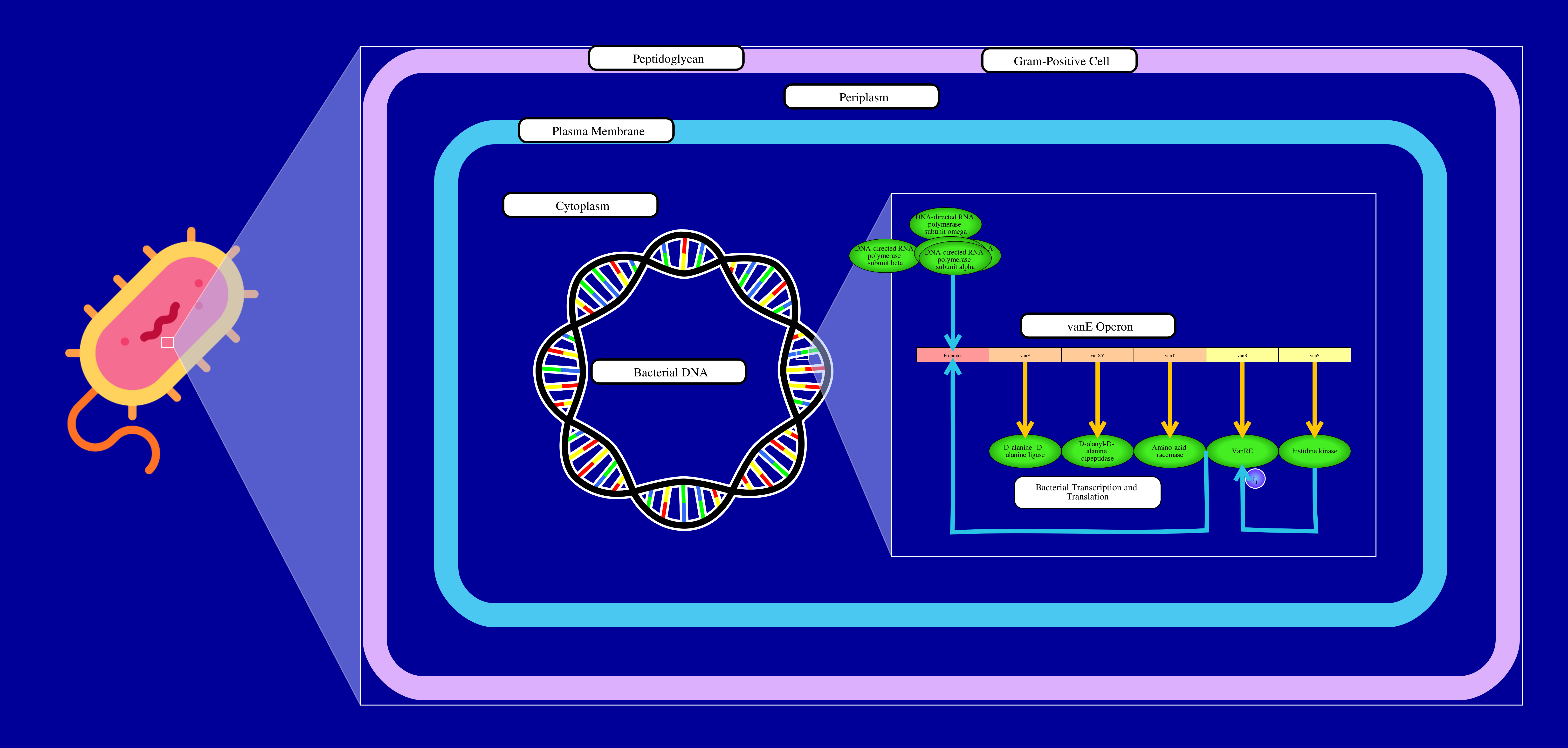

Vancomycin resistance Action Pathway (VanE operon)
Enterococcus faecalis
Drug Action Pathway
The VanE-type vancomycin resistance pathway enables enterococcal bacteria to resist the action of the glycopeptide antibiotic vancomycin. This pathway involves a series of genes organized in an the VanE operon, which encodes enzymes and regulatory proteins that alter the bacterial cell wall, making it resistant to vancomycin. The operon is made up of 5 genes which can be divided into regulatory (vanR and vanS) and resistance (vanE, vanXY and vanT). The vanR gene is a response regulator that is part of a two-component regulatory system and activates transcription once phosphorylated by histidine kinase that is encoded by vanS, after detecting vancomycin. The VanE gene encodes D-Ala-D-Lac ligase that synthesizes the D-Ala-D-Lac dipeptide, which replaces the normal D-Ala-D-Ala in the peptidoglycan precursor to which vancomycin has less affinity. vanXY gene encodes a bifunctional D,D-dipeptidase and D,D-carboxypeptidase that hydrolyzes any remaining D-Ala-D-Ala dipeptides and removes D-alanine from peptidoglycan precursors (UDP-MurNAc-pentapeptide[d-Ala]), ensuring that only D-Ala-D-Ser is incorporated into the cell wall. Lastly, VanT encodes a serine racemase that is membrane-bound and supplies d-Ser for the synthesis pathway.
References
Vancomycin resistance pathway (VanE operon) References
Fines, M., Perichon, B., Reynolds, P., Sahm, D.F. and Courvalin, P., 1999. VanE, a new type of acquired glycopeptide resistance in Enterococcus faecalis BM4405. Antimicrobial agents and chemotherapy, 43(9), pp.2161-2164.
Abadía Patiño, L., Courvalin, P. and Perichon, B., 2002. vanE gene cluster of vancomycin-resistant Enterococcus faecalis BM4405. Journal of bacteriology, 184(23), pp.6457-6464.
Abadía-Patino, L., Christiansen, K., Bell, J., Courvalin, P. and Périchon, B., 2004. VanE-type vancomycin-resistant Enterococcus faecalis clinical isolates from Australia. Antimicrobial agents and chemotherapy, 48(12), pp.4882-4885.
