    Pathway Description
      L-Lyxose Degradation
Escherichia coli
          Metabolic Pathway

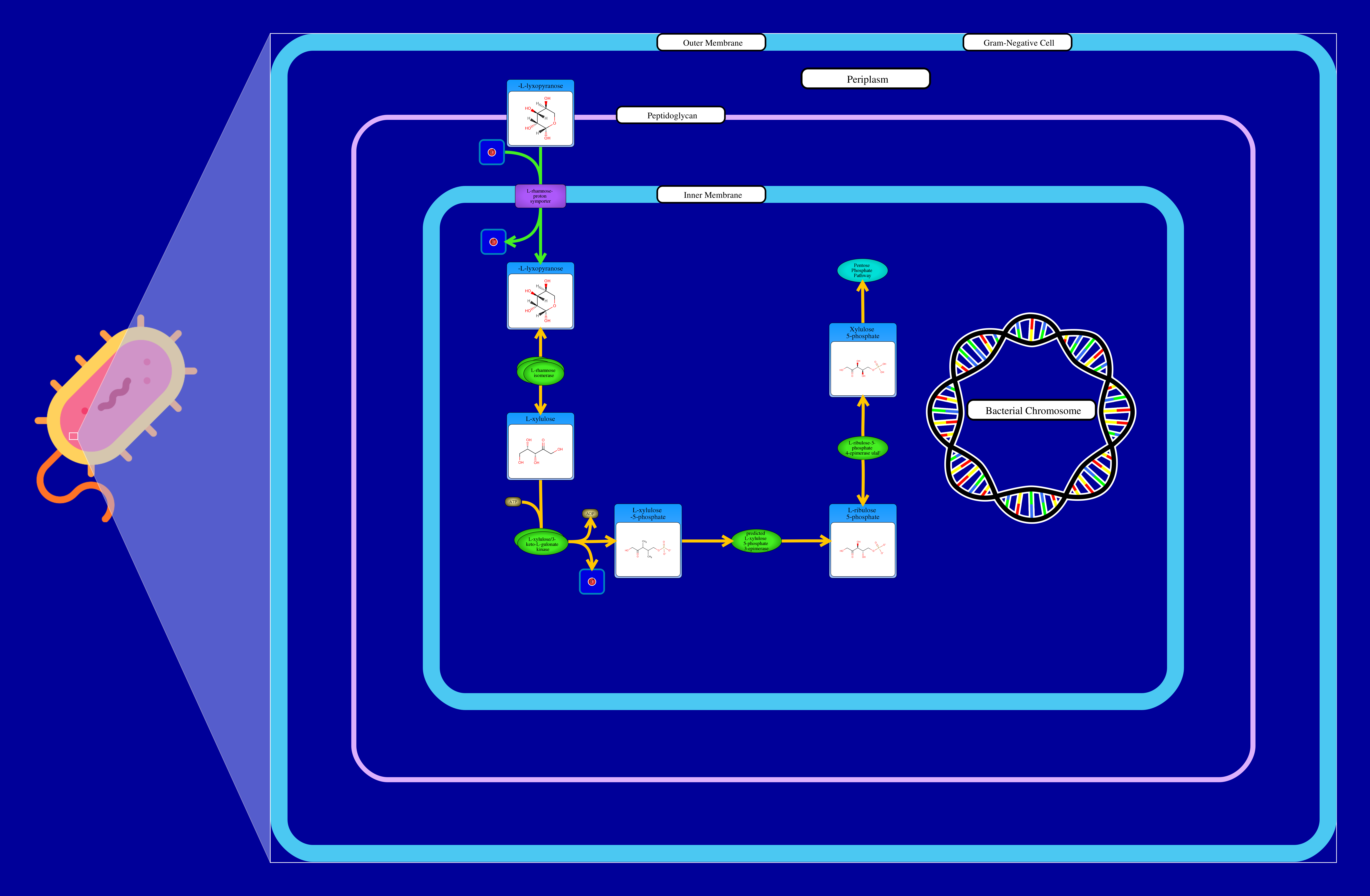

          L-lyxose is a sugar and a monosaccharide containing five carbon atoms and aldehyde group. Wild-type E.coli can't utilize L-lyxose as its source of carbon and energy. In mutated E.coli, it can metabolize l-lyxose through utilization of enzymes of the rhamnose, arabinose and 2,3-diketo-L-gulonate systems. β-L-lyxopyranose enter cell by L-rhamnose-proton symporter, then convert to l-xylulose by L-rhamnose isomerase. L-xylulose is further metabolized to L-xylulose-5-phosphate with energy ATP. Putative L-ribulose-5-phosphate 3-epimerase can convert L-xylulose -5-phosphate to L-ribulose 5-phosphate, and L-ribulose 5-phosphate 4-epimerase can catalyze L-ribulose 5-phosphate to xylulose 5-phosphate for further pentose phosphate.

      References

      L-Lyxose Degradation References
Badia J, Gimenez R, Baldoma L, Barnes E, Fessner WD, Aguilar J: L-lyxose metabolism employs the L-rhamnose pathway in mutant cells of Escherichia coli adapted to grow on L-lyxose. J Bacteriol. 1991 Aug;173(16):5144-50.
                  Pubmed: 1650346
              This pathway was propagated using PathWhiz -
                Pon, A. et al. Pathways with PathWhiz (2015) Nucleic Acids Res. 43(Web Server issue): W552–W559.

            Propagated from PW002100
