Pathway Description

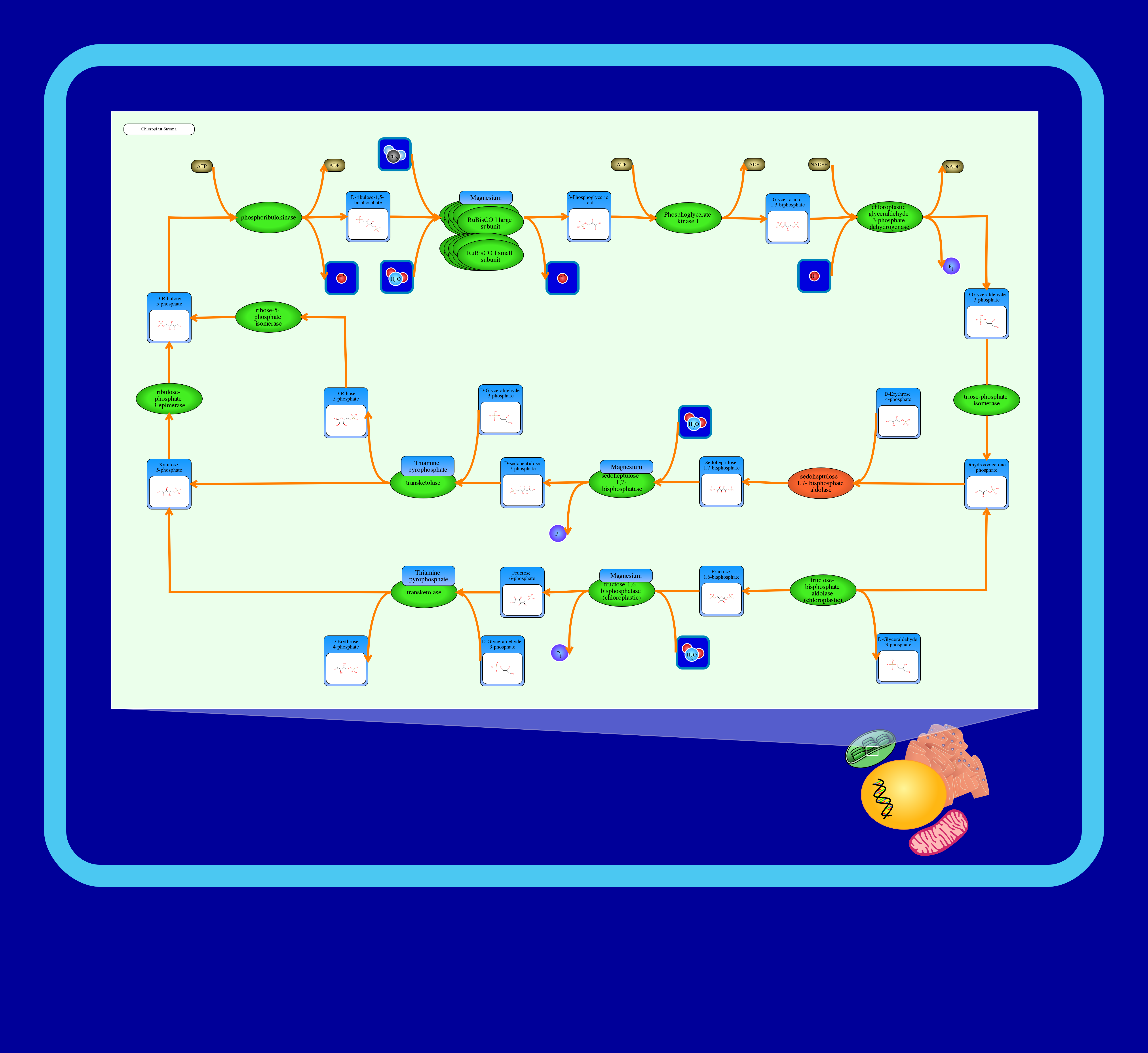

Calvin-Benson Cycle
Arabidopsis thaliana
Category:
Metabolite Pathway
Sub-Category:
Metabolic
Created: 2017-04-11
Last Updated: 2025-01-25
Photosynthesis involves the transfer and harvesting of energy from sunlight and the fixation of carbon dioxide into carbohydrates. This process occurs in higher plants, including Arabidopsis thaliana. Oxygenic photosynthesis requires water, which acts as an electron donor molecule. The reactions which involve the trapping of sunlight are known as "light reactions", and result in the production of NADPH, adenosine triphosphate, and molecular oxygen. The "dark reactions" are known as the Calvin cycle, and involve the use of the products of the light reactions to fix carbon dioxide and produce carbohydrates. The light-independent Calvin-Benson cycle consist of nine reactions that take place in the chloroplast stroma. Beginning with the enzyme RuBisCO, D-ribulose-1,5-bisphosphate is converted into 3-phosphoglyceric acid. It requires magnesium ion as a cofactor. Next, chloroplastic glyceraldehyde 3-phosphate dehydrogenase catalyzes the conversion of glyceric acid 1,3-biphosphate into D-glyceraldehyde 3-phosphate. Then triose-phosphate isomerase catalyzes the conversion of D-glyceraldehyde 3-phosphate into dihydroxyacetone phosphate. Next, the enzyme fructose-bisphosphate aldolase catalyzes the conversion of dihydroxyacetone phosphate into fructose 1,6-bisphosphate. Then fructose-1,6-bisphosphatase catalyzes the conversion of fructose 1,6-bisphosphate into fructose-6-phosphate. It requires magnesium ion as a cofactor. Next, transketolase catalyzes the conversion of fructose-6-phosphate into xylulose 5-phosphate. It requires a divalent metal cation and thiamine diphosphate as cofactors. Then the enzyme ribulose-phosphate 3-epimerase is catalyzes the interconverson of xylulose 5-phosphate and D-ribulose 5-phosphate. Lastly, phosphoribulokinase catalyzes the conversion of D-ribulose 5-phosphate to regenerate D-ribulose-1,5-bisphosphate. An alternative pathway intersects the Calvin-Benson cycle providing another route to synthesize D-ribulose 5-phosphate and D-xylulose 5-phosphate, which both feed back into the main cycle, from dihydroxyacetone phosphate. This subpathway begins with the predicted enzyme sedoheptulose-1,7-bisphosphate aldolase theorized to catalyze the converson of glycerone phosphate and D-erythrose 4-phosphate into sedoheptulose-1,7-bisphosphate. Next, sedoheptulose-1,7-bisphosphatase catalyzes the conversion of sedoheptulose-1,7-bisphosphate into D-sedoheptulose 7-phosphate. Next, transketolase catalyzes the converson of D-sedoheptulose 7-phosphate into D-ribose 5-phosphate and D-xylulose 5-phosphate (which feeds back into the main cycle). Lastly, ribose-5-phosphate isomerase is the probable enzyme that catalyzes the interconverson of D-ribose 5-phosphate and D-ribulose 5-phosphate. D-ribulose 5-phosphate feeds back into the main cycle.
References
Calvin-Benson Cycle References
Marri L, Sparla F, Pupillo P, Trost P: Co-ordinated gene expression of photosynthetic glyceraldehyde-3-phosphate dehydrogenase, phosphoribulokinase, and CP12 in Arabidopsis thaliana. J Exp Bot. 2005 Jan;56(409):73-80. doi: 10.1093/jxb/eri020. Epub 2004 Nov 8.
Pubmed: 15533878
Krebbers E, Seurinck J, Herdies L, Cashmore AR, Timko MP: Four genes in two diverged subfamilies encode the ribulose-1,5-bisphosphate carboxylase small subunit polypeptides of Arabidopsis thaliana. Plant Mol Biol. 1988 Nov;11(6):745-59. doi: 10.1007/BF00019515.
Pubmed: 24272625
Horsnell PR, Raines CA: Nucleotide sequence of a cDNA clone encoding chloroplast phosphoribulokinase from Arabidopsis thaliana. Plant Mol Biol. 1991 Jul;17(1):183-4. doi: 10.1007/bf00036828.
Pubmed: 1651130
Theologis A, Ecker JR, Palm CJ, Federspiel NA, Kaul S, White O, Alonso J, Altafi H, Araujo R, Bowman CL, Brooks SY, Buehler E, Chan A, Chao Q, Chen H, Cheuk RF, Chin CW, Chung MK, Conn L, Conway AB, Conway AR, Creasy TH, Dewar K, Dunn P, Etgu P, Feldblyum TV, Feng J, Fong B, Fujii CY, Gill JE, Goldsmith AD, Haas B, Hansen NF, Hughes B, Huizar L, Hunter JL, Jenkins J, Johnson-Hopson C, Khan S, Khaykin E, Kim CJ, Koo HL, Kremenetskaia I, Kurtz DB, Kwan A, Lam B, Langin-Hooper S, Lee A, Lee JM, Lenz CA, Li JH, Li Y, Lin X, Liu SX, Liu ZA, Luros JS, Maiti R, Marziali A, Militscher J, Miranda M, Nguyen M, Nierman WC, Osborne BI, Pai G, Peterson J, Pham PK, Rizzo M, Rooney T, Rowley D, Sakano H, Salzberg SL, Schwartz JR, Shinn P, Southwick AM, Sun H, Tallon LJ, Tambunga G, Toriumi MJ, Town CD, Utterback T, Van Aken S, Vaysberg M, Vysotskaia VS, Walker M, Wu D, Yu G, Fraser CM, Venter JC, Davis RW: Sequence and analysis of chromosome 1 of the plant Arabidopsis thaliana. Nature. 2000 Dec 14;408(6814):816-20. doi: 10.1038/35048500.
Pubmed: 11130712
Cheng CY, Krishnakumar V, Chan AP, Thibaud-Nissen F, Schobel S, Town CD: Araport11: a complete reannotation of the Arabidopsis thaliana reference genome. Plant J. 2017 Feb;89(4):789-804. doi: 10.1111/tpj.13415. Epub 2017 Feb 10.
Pubmed: 27862469
Sato S, Nakamura Y, Kaneko T, Asamizu E, Tabata S: Complete structure of the chloroplast genome of Arabidopsis thaliana. DNA Res. 1999 Oct 29;6(5):283-90. doi: 10.1093/dnares/6.5.283.
Pubmed: 10574454
Isono K, Niwa Y, Satoh K, Kobayashi H: Evidence for transcriptional regulation of plastid photosynthesis genes in Arabidopsis thaliana roots. Plant Physiol. 1997 Jun;114(2):623-30. doi: 10.1104/pp.114.2.623.
Pubmed: 9193094
Ferro M, Salvi D, Brugiere S, Miras S, Kowalski S, Louwagie M, Garin J, Joyard J, Rolland N: Proteomics of the chloroplast envelope membranes from Arabidopsis thaliana. Mol Cell Proteomics. 2003 May;2(5):325-45. doi: 10.1074/mcp.M300030-MCP200. Epub 2003 May 23.
Pubmed: 12766230
Yamada K, Lim J, Dale JM, Chen H, Shinn P, Palm CJ, Southwick AM, Wu HC, Kim C, Nguyen M, Pham P, Cheuk R, Karlin-Newmann G, Liu SX, Lam B, Sakano H, Wu T, Yu G, Miranda M, Quach HL, Tripp M, Chang CH, Lee JM, Toriumi M, Chan MM, Tang CC, Onodera CS, Deng JM, Akiyama K, Ansari Y, Arakawa T, Banh J, Banno F, Bowser L, Brooks S, Carninci P, Chao Q, Choy N, Enju A, Goldsmith AD, Gurjal M, Hansen NF, Hayashizaki Y, Johnson-Hopson C, Hsuan VW, Iida K, Karnes M, Khan S, Koesema E, Ishida J, Jiang PX, Jones T, Kawai J, Kamiya A, Meyers C, Nakajima M, Narusaka M, Seki M, Sakurai T, Satou M, Tamse R, Vaysberg M, Wallender EK, Wong C, Yamamura Y, Yuan S, Shinozaki K, Davis RW, Theologis A, Ecker JR: Empirical analysis of transcriptional activity in the Arabidopsis genome. Science. 2003 Oct 31;302(5646):842-6. doi: 10.1126/science.1088305.
Pubmed: 14593172
Sato S, Nakamura Y, Kaneko T, Katoh T, Asamizu E, Tabata S: Structural analysis of Arabidopsis thaliana chromosome 3. I. Sequence features of the regions of 4,504,864 bp covered by sixty P1 and TAC clones. DNA Res. 2000 Apr 28;7(2):131-5. doi: 10.1093/dnares/7.2.131.
Pubmed: 10819329
Shih MC, Heinrich P, Goodman HM: Cloning and chromosomal mapping of nuclear genes encoding chloroplast and cytosolic glyceraldehyde-3-phosphate-dehydrogenase from Arabidopsis thaliana. Gene. 1991 Aug 15;104(2):133-8. doi: 10.1016/0378-1119(91)90242-4.
Pubmed: 1916285
Shih MC, Heinrich P, Goodman HM: Cloning and chromosomal mapping of nuclear genes encoding chloroplast and cytosolic glyceraldehyde-3-phosphate-dehydrogenase from Arabidopsis thaliana. Gene. 1992 Oct 1;119(2):317-9. doi: 10.1016/0378-1119(92)90290-6.
Pubmed: 1398114
Quigley F, Dao P, Cottet A, Mache R: Sequence analysis of an 81 kb contig from Arabidopsis thaliana chromosome III. Nucleic Acids Res. 1996 Nov 1;24(21):4313-8. doi: 10.1093/nar/24.21.4313.
Pubmed: 8932388
Lin X, Kaul S, Rounsley S, Shea TP, Benito MI, Town CD, Fujii CY, Mason T, Bowman CL, Barnstead M, Feldblyum TV, Buell CR, Ketchum KA, Lee J, Ronning CM, Koo HL, Moffat KS, Cronin LA, Shen M, Pai G, Van Aken S, Umayam L, Tallon LJ, Gill JE, Adams MD, Carrera AJ, Creasy TH, Goodman HM, Somerville CR, Copenhaver GP, Preuss D, Nierman WC, White O, Eisen JA, Salzberg SL, Fraser CM, Venter JC: Sequence and analysis of chromosome 2 of the plant Arabidopsis thaliana. Nature. 1999 Dec 16;402(6763):761-8. doi: 10.1038/45471.
Pubmed: 10617197
Salanoubat M, Lemcke K, Rieger M, Ansorge W, Unseld M, Fartmann B, Valle G, Blocker H, Perez-Alonso M, Obermaier B, Delseny M, Boutry M, Grivell LA, Mache R, Puigdomenech P, De Simone V, Choisne N, Artiguenave F, Robert C, Brottier P, Wincker P, Cattolico L, Weissenbach J, Saurin W, Quetier F, Schafer M, Muller-Auer S, Gabel C, Fuchs M, Benes V, Wurmbach E, Drzonek H, Erfle H, Jordan N, Bangert S, Wiedelmann R, Kranz H, Voss H, Holland R, Brandt P, Nyakatura G, Vezzi A, D'Angelo M, Pallavicini A, Toppo S, Simionati B, Conrad A, Hornischer K, Kauer G, Lohnert TH, Nordsiek G, Reichelt J, Scharfe M, Schon O, Bargues M, Terol J, Climent J, Navarro P, Collado C, Perez-Perez A, Ottenwalder B, Duchemin D, Cooke R, Laudie M, Berger-Llauro C, Purnelle B, Masuy D, de Haan M, Maarse AC, Alcaraz JP, Cottet A, Casacuberta E, Monfort A, Argiriou A, flores M, Liguori R, Vitale D, Mannhaupt G, Haase D, Schoof H, Rudd S, Zaccaria P, Mewes HW, Mayer KF, Kaul S, Town CD, Koo HL, Tallon LJ, Jenkins J, Rooney T, Rizzo M, Walts A, Utterback T, Fujii CY, Shea TP, Creasy TH, Haas B, Maiti R, Wu D, Peterson J, Van Aken S, Pai G, Militscher J, Sellers P, Gill JE, Feldblyum TV, Preuss D, Lin X, Nierman WC, Salzberg SL, White O, Venter JC, Fraser CM, Kaneko T, Nakamura Y, Sato S, Kato T, Asamizu E, Sasamoto S, Kimura T, Idesawa K, Kawashima K, Kishida Y, Kiyokawa C, Kohara M, Matsumoto M, Matsuno A, Muraki A, Nakayama S, Nakazaki N, Shinpo S, Takeuchi C, Wada T, Watanabe A, Yamada M, Yasuda M, Tabata S: Sequence and analysis of chromosome 3 of the plant Arabidopsis thaliana. Nature. 2000 Dec 14;408(6814):820-2. doi: 10.1038/35048706.
Pubmed: 11130713
Haas BJ, Volfovsky N, Town CD, Troukhan M, Alexandrov N, Feldmann KA, Flavell RB, White O, Salzberg SL: Full-length messenger RNA sequences greatly improve genome annotation. Genome Biol. 2002;3(6):RESEARCH0029. doi: 10.1186/gb-2002-3-6-research0029. Epub 2002 May 30.
Pubmed: 12093376
Willingham NM, Lloyd JC, Raines CA: Molecular cloning of the Arabidopsis thaliana sedoheptulose-1,7-biphosphatase gene and expression studies in wheat and Arabidopsis thaliana. Plant Mol Biol. 1994 Nov;26(4):1191-200. doi: 10.1007/bf00040699.
Pubmed: 7811976
