Pathway Description

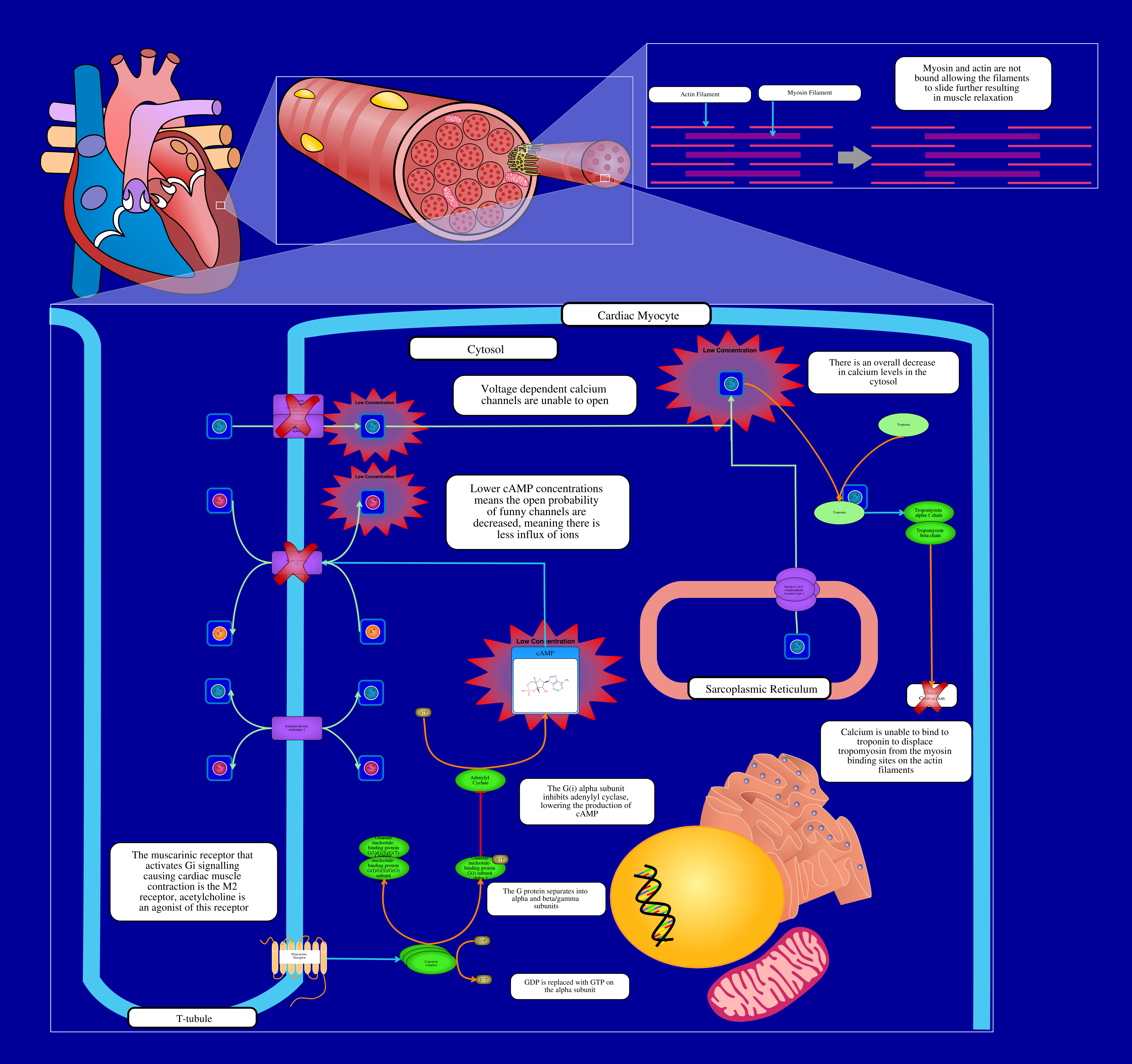

Gi Muscarinic Cardiac Muscle Contraction
Bos taurus
Category:
Metabolite Pathway
Sub-Category:
Physiological
Created: 2023-09-04
Last Updated: 2023-11-27
The M2 muscarinic receptors are located in the heart, where they act to slow the heart rate down to normal sinus rhythm after negative stimulatory actions of the parasympathetic nervous system, by slowing the speed of depolarization. They also reduce contractile forces of the atrial cardiac muscle, and reduce conduction velocity of the atrioventricular node (AV node). However, they have little effect on the contractile forces of the ventricular muscle, slightly decreasing force. Gi protein alpha subunit is a family of heterotrimeric G protein alpha subunits. This family is also commonly called the Gi/o (Gi /Go ) family or Gi/o/z/t family to include closely related family members. G alpha subunits may be referred to as Gi alpha, Gαi, or Giα. The general function of Gi/o/z/t is to activate intracellular signaling pathways in response to activation of cell surface G protein-coupled receptors (GPCRs). GPCRs function as part of a three-component system of receptor-transducer-effector. The transducer in this system is a heterotrimeric G protein, composed of three subunits: a Gα protein such as Giα, and a complex of two tightly linked proteins called Gβ and Gγ in a Gβγ complex. When not stimulated by a receptor, Gα is bound to GDP and to Gβγ to form the inactive G protein trimer.When the receptor binds an activating ligand outside the cell (such as a hormone or neurotransmitter), the activated receptor acts as a guanine nucleotide exchange factor to promote GDP release from and GTP binding to Gα, which drives dissociation of GTP-bound Gα from Gβγ. GTP-bound Gα and Gβγ are then freed to activate their respective downstream signaling enzymes. Gi proteins primarily inhibit the cAMP dependent pathway by inhibiting adenylyl cyclase activity, decreasing the production of cAMP from ATP, which, in turn, results in decreased activity of cAMP-dependent protein kinase. Inhibition of adenylyl cyclase leads to a decrease in intracellular cAMP levels. In SA node cells, cAMP normally activates protein kinase A (PKA), which phosphorylates If channels, increasing their activity and thereby promoting depolarization. With reduced cAMP levels and decreased PKA activity, If channels become less active. This results in slower and less frequent spontaneous depolarization of SA node cells. Slower depolarization leads to a longer time for the membrane potential to reach the threshold for firing an action potential. In summary, the Gi protein-mediated mechanism in cardiac muscle primarily involves the inhibition of adenylyl cyclase, leading to reduced cAMP levels and decreased PKA activity. This, in turn, inhibits the activity of If channels, which control the rate of spontaneous depolarization in SA node cells. As a result, the heart rate is reduced, allowing the parasympathetic nervous system to exert control over heart rate regulation.
References
Gi Muscarinic Cardiac Muscle Contraction References
Wishart DS, Feunang YD, Guo AC, Lo EJ, Marcu A, Grant JR, Sajed T, Johnson D, Li C, Sayeeda Z, Assempour N, Iynkkaran I, Liu Y, Maciejewski A, Gale N, Wilson A, Chin L, Cummings R, Le D, Pon A, Knox C, Wilson M: DrugBank 5.0: a major update to the DrugBank database for 2018. Nucleic Acids Res. 2018 Jan 4;46(D1):D1074-D1082. doi: 10.1093/nar/gkx1037.
Pubmed: 29126136
Baruscotti M, Bucchi A, Difrancesco D: Physiology and pharmacology of the cardiac pacemaker ("funny") current. Pharmacol Ther. 2005 Jul;107(1):59-79. doi: 10.1016/j.pharmthera.2005.01.005.
Pubmed: 15963351
DiFrancesco D, Tortora P: Direct activation of cardiac pacemaker channels by intracellular cyclic AMP. Nature. 1991 May 9;351(6322):145-7. doi: 10.1038/351145a0.
Pubmed: 1709448
Billington CK, Penn RB: Signaling and regulation of G protein-coupled receptors in airway smooth muscle. Respir Res. 2003;4(1):2. Epub 2003 Mar 14.
Pubmed: 12648290
Salazar NC, Chen J, Rockman HA: Cardiac GPCRs: GPCR signaling in healthy and failing hearts. Biochim Biophys Acta. 2007 Apr;1768(4):1006-18. doi: 10.1016/j.bbamem.2007.02.010. Epub 2007 Feb 20.
Pubmed: 17376402
Gilman AG: G proteins: transducers of receptor-generated signals. Annu Rev Biochem. 1987;56:615-49. doi: 10.1146/annurev.bi.56.070187.003151.
Pubmed: 3113327
Nukada T, Tanabe T, Takahashi H, Noda M, Haga K, Haga T, Ichiyama A, Kanagawa K, Hiranaga M, Matsuo, et al.: Primary structure of the alpha-subunit of bovine adenylate cyclase-inhibiting G-protein deduced from the cDNA sequence. FEBS Lett. 1986 Mar 3;197(1-2):305-10. doi: 10.1016/0014-5793(86)80347-7.
Pubmed: 2419165
Michel T, Winslow JW, Smith JA, Seidman JG, Neer EJ: Molecular cloning and characterization of cDNA encoding the GTP-binding protein alpha i and identification of a related protein, alpha h. Proc Natl Acad Sci U S A. 1986 Oct;83(20):7663-7. doi: 10.1073/pnas.83.20.7663.
Pubmed: 3094012
Petrovski S, Kury S, Myers CT, Anyane-Yeboa K, Cogne B, Bialer M, Xia F, Hemati P, Riviello J, Mehaffey M, Besnard T, Becraft E, Wadley A, Politi AR, Colombo S, Zhu X, Ren Z, Andrews I, Dudding-Byth T, Schneider AL, Wallace G, Rosen ABI, Schelley S, Enns GM, Corre P, Dalton J, Mercier S, Latypova X, Schmitt S, Guzman E, Moore C, Bier L, Heinzen EL, Karachunski P, Shur N, Grebe T, Basinger A, Nguyen JM, Bezieau S, Wierenga K, Bernstein JA, Scheffer IE, Rosenfeld JA, Mefford HC, Isidor B, Goldstein DB: Germline De Novo Mutations in GNB1 Cause Severe Neurodevelopmental Disability, Hypotonia, and Seizures. Am J Hum Genet. 2016 May 5;98(5):1001-1010. doi: 10.1016/j.ajhg.2016.03.011. Epub 2016 Apr 21.
Pubmed: 27108799
Steinrucke S, Lohmann K, Domingo A, Rolfs A, Baumer T, Spiegler J, Hartmann C, Munchau A: Novel GNB1 missense mutation in a patient with generalized dystonia, hypotonia, and intellectual disability. Neurol Genet. 2016 Sep 13;2(5):e106. doi: 10.1212/NXG.0000000000000106. eCollection 2016 Oct.
Pubmed: 27668284
Lohmann K, Masuho I, Patil DN, Baumann H, Hebert E, Steinrucke S, Trujillano D, Skamangas NK, Dobricic V, Huning I, Gillessen-Kaesbach G, Westenberger A, Savic-Pavicevic D, Munchau A, Oprea G, Klein C, Rolfs A, Martemyanov KA: Novel GNB1 mutations disrupt assembly and function of G protein heterotrimers and cause global developmental delay in humans. Hum Mol Genet. 2017 Mar 15;26(6):1078-1086. doi: 10.1093/hmg/ddx018.
Pubmed: 28087732
Robishaw JD, Kalman VK, Moomaw CR, Slaughter CA: Existence of two gamma subunits of the G proteins in brain. J Biol Chem. 1989 Sep 25;264(27):15758-61.
Pubmed: 2506169
Gautam N, Baetscher M, Aebersold R, Simon MI: A G protein gamma subunit shares homology with ras proteins. Science. 1989 May 26;244(4907):971-4. doi: 10.1126/science.2499046.
Pubmed: 2499046
Wilcox MD, Schey KL, Busman M, Hildebrandt JD: Determination of the complete covalent structure of the gamma 2 subunit of bovine brain G proteins by mass spectrometry. Biochem Biophys Res Commun. 1995 Jul 17;212(2):367-74. doi: 10.1006/bbrc.1995.1979.
Pubmed: 7626050
Codina J, Stengel D, Woo SL, Birnbaumer L: Beta-subunits of the human liver Gs/Gi signal-transducing proteins and those of bovine retinal rod cell transducin are identical. FEBS Lett. 1986 Oct 27;207(2):187-92. doi: 10.1016/0014-5793(86)81486-7.
Pubmed: 3095147
Gregory SG, Barlow KF, McLay KE, Kaul R, Swarbreck D, Dunham A, Scott CE, Howe KL, Woodfine K, Spencer CC, Jones MC, Gillson C, Searle S, Zhou Y, Kokocinski F, McDonald L, Evans R, Phillips K, Atkinson A, Cooper R, Jones C, Hall RE, Andrews TD, Lloyd C, Ainscough R, Almeida JP, Ambrose KD, Anderson F, Andrew RW, Ashwell RI, Aubin K, Babbage AK, Bagguley CL, Bailey J, Beasley H, Bethel G, Bird CP, Bray-Allen S, Brown JY, Brown AJ, Buckley D, Burton J, Bye J, Carder C, Chapman JC, Clark SY, Clarke G, Clee C, Cobley V, Collier RE, Corby N, Coville GJ, Davies J, Deadman R, Dunn M, Earthrowl M, Ellington AG, Errington H, Frankish A, Frankland J, French L, Garner P, Garnett J, Gay L, Ghori MR, Gibson R, Gilby LM, Gillett W, Glithero RJ, Grafham DV, Griffiths C, Griffiths-Jones S, Grocock R, Hammond S, Harrison ES, Hart E, Haugen E, Heath PD, Holmes S, Holt K, Howden PJ, Hunt AR, Hunt SE, Hunter G, Isherwood J, James R, Johnson C, Johnson D, Joy A, Kay M, Kershaw JK, Kibukawa M, Kimberley AM, King A, Knights AJ, Lad H, Laird G, Lawlor S, Leongamornlert DA, Lloyd DM, Loveland J, Lovell J, Lush MJ, Lyne R, Martin S, Mashreghi-Mohammadi M, Matthews L, Matthews NS, McLaren S, Milne S, Mistry S, Moore MJ, Nickerson T, O'Dell CN, Oliver K, Palmeiri A, Palmer SA, Parker A, Patel D, Pearce AV, Peck AI, Pelan S, Phelps K, Phillimore BJ, Plumb R, Rajan J, Raymond C, Rouse G, Saenphimmachak C, Sehra HK, Sheridan E, Shownkeen R, Sims S, Skuce CD, Smith M, Steward C, Subramanian S, Sycamore N, Tracey A, Tromans A, Van Helmond Z, Wall M, Wallis JM, White S, Whitehead SL, Wilkinson JE, Willey DL, Williams H, Wilming L, Wray PW, Wu Z, Coulson A, Vaudin M, Sulston JE, Durbin R, Hubbard T, Wooster R, Dunham I, Carter NP, McVean G, Ross MT, Harrow J, Olson MV, Beck S, Rogers J, Bentley DR, Banerjee R, Bryant SP, Burford DC, Burrill WD, Clegg SM, Dhami P, Dovey O, Faulkner LM, Gribble SM, Langford CF, Pandian RD, Porter KM, Prigmore E: The DNA sequence and biological annotation of human chromosome 1. Nature. 2006 May 18;441(7091):315-21. doi: 10.1038/nature04727.
Pubmed: 16710414
Hurowitz EH, Melnyk JM, Chen YJ, Kouros-Mehr H, Simon MI, Shizuya H: Genomic characterization of the human heterotrimeric G protein alpha, beta, and gamma subunit genes. DNA Res. 2000 Apr 28;7(2):111-20. doi: 10.1093/dnares/7.2.111.
Pubmed: 10819326
Hu RM, Han ZG, Song HD, Peng YD, Huang QH, Ren SX, Gu YJ, Huang CH, Li YB, Jiang CL, Fu G, Zhang QH, Gu BW, Dai M, Mao YF, Gao GF, Rong R, Ye M, Zhou J, Xu SH, Gu J, Shi JX, Jin WR, Zhang CK, Wu TM, Huang GY, Chen Z, Chen MD, Chen JL: Gene expression profiling in the human hypothalamus-pituitary-adrenal axis and full-length cDNA cloning. Proc Natl Acad Sci U S A. 2000 Aug 15;97(17):9543-8. doi: 10.1073/pnas.160270997.
Pubmed: 10931946
Cook LA, Schey KL, Cleator JH, Wilcox MD, Dingus J, Hildebrandt JD: Identification of a region in G protein gamma subunits conserved across species but hypervariable among subunit isoforms. Protein Sci. 2001 Dec;10(12):2548-55. doi: 10.1110/ps.ps.26401.
Pubmed: 11714923
Yoo SH, Oh YS, Kang MK, Huh YH, So SH, Park HS, Park HY: Localization of three types of the inositol 1,4,5-trisphosphate receptor/Ca(2+) channel in the secretory granules and coupling with the Ca(2+) storage proteins chromogranins A and B. J Biol Chem. 2001 Dec 7;276(49):45806-12. doi: 10.1074/jbc.M107532200. Epub 2001 Oct 2.
Pubmed: 11584008
Marks AR, Tempst P, Chadwick CC, Riviere L, Fleischer S, Nadal-Ginard B: Smooth muscle and brain inositol 1,4,5-trisphosphate receptors are structurally and functionally similar. J Biol Chem. 1990 Dec 5;265(34):20719-22.
Pubmed: 2174422
Schlossmann J, Ammendola A, Ashman K, Zong X, Huber A, Neubauer G, Wang GX, Allescher HD, Korth M, Wilm M, Hofmann F, Ruth P: Regulation of intracellular calcium by a signalling complex of IRAG, IP3 receptor and cGMP kinase Ibeta. Nature. 2000 Mar 9;404(6774):197-201. doi: 10.1038/35004606.
Pubmed: 10724174
Weyand I, Godde M, Frings S, Weiner J, Muller F, Altenhofen W, Hatt H, Kaupp UB: Cloning and functional expression of a cyclic-nucleotide-gated channel from mammalian sperm. Nature. 1994 Apr 28;368(6474):859-63. doi: 10.1038/368859a0.
Pubmed: 7512693
Biel M, Zong X, Distler M, Bosse E, Klugbauer N, Murakami M, Flockerzi V, Hofmann F: Another member of the cyclic nucleotide-gated channel family, expressed in testis, kidney, and heart. Proc Natl Acad Sci U S A. 1994 Apr 26;91(9):3505-9. doi: 10.1073/pnas.91.9.3505.
Pubmed: 8170936
Zimin AV, Delcher AL, Florea L, Kelley DR, Schatz MC, Puiu D, Hanrahan F, Pertea G, Van Tassell CP, Sonstegard TS, Marcais G, Roberts M, Subramanian P, Yorke JA, Salzberg SL: A whole-genome assembly of the domestic cow, Bos taurus. Genome Biol. 2009;10(4):R42. doi: 10.1186/gb-2009-10-4-r42. Epub 2009 Apr 24.
Pubmed: 19393038
This pathway was propagated using PathWhiz -
Pon, A. et al. Pathways with PathWhiz (2015) Nucleic Acids Res. 43(Web Server issue): W552–W559.
