Pathway Description
Complement Pathway
Homo sapiens
Category:
Protein Pathway
Sub-Categories:
Immunological
Kinase Signaling
Pathogen-Activated Signaling
Cellular Response
Created: 2018-07-24
Last Updated: 2019-08-16

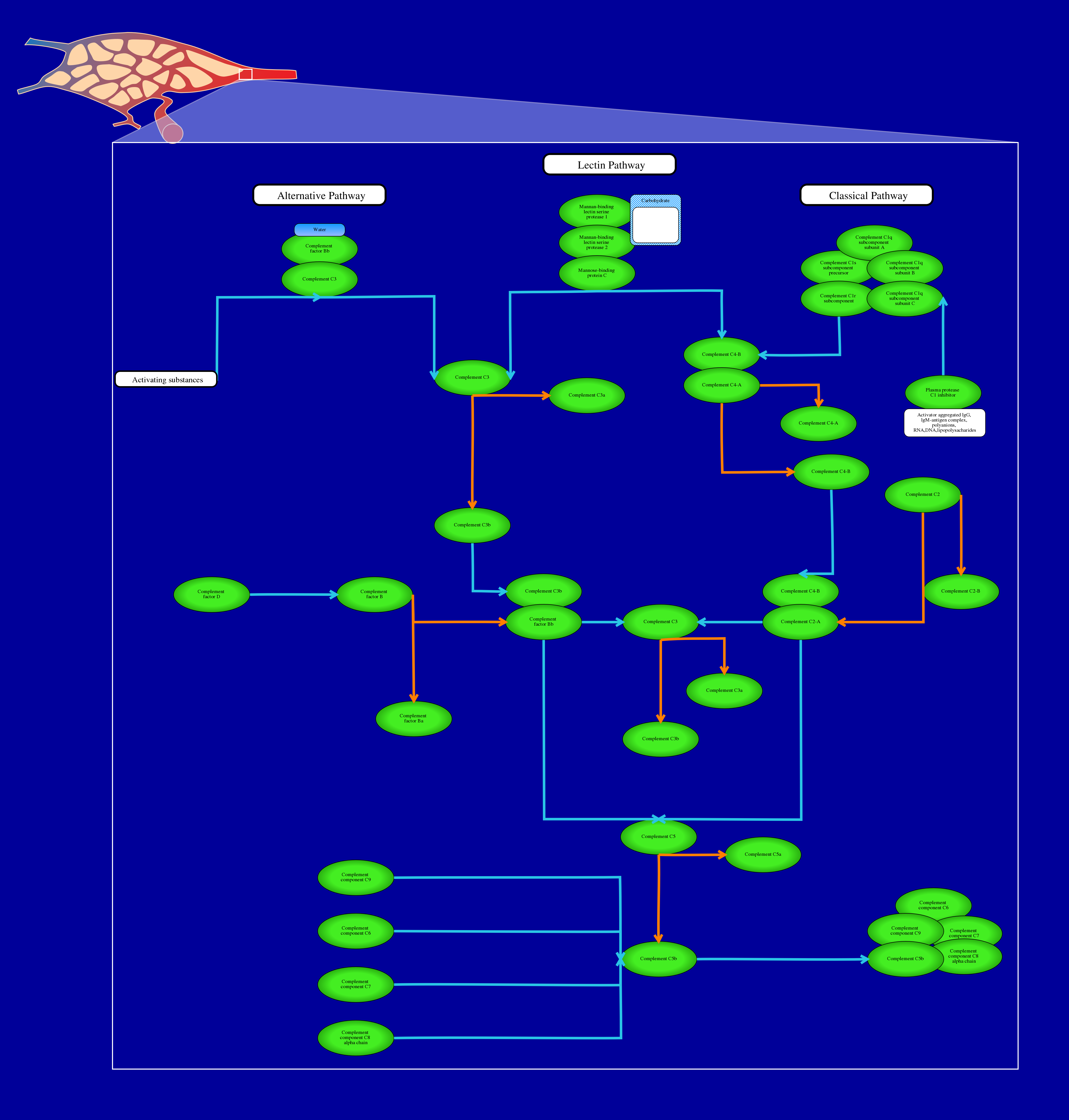

The complement system includes three separate pathways that lead to complement's activation. These pathways all have different molecules that trigger their activation, but all of them lead to a response by phagocytes as part of a response by the innate immune system.
In the alternative pathway, complement factor C3 can spontaneously hydrolyze to form a complex with water. Complement factor D is a protease that can work at the same time, and it cleaves complement factor B into factors Ba and Bb. the C3(H2O) complex can bind to factor Bb, which is a C3 convertase, and works to cleave factor C3 into C3a and C3b more quickly. The C3(H2O)Bb complex also binds factor B, leading to easier cleavage into Ba and Bb by factor D. Following this, complement factor C3b can bind to the surface of cells, and on host cells, proteins on the cell membrane can bind to C3b, preventing it from forming complement factor C5 convertase. However, on pathogen cells, these proteins do not exist, complement factor Bb can bind to two molecules of C3b, forming a C5-convertase which is the end point of the other two pathways.
In the lectin pathway, mannan-binding lectin serine proteases (MASP) 1 and 2, as well as mannose-binding protein C bind to carbohydrates, specifically mannose, glucose and sugars with specific hydroxide group placements. These sugars are found in the cell walls of bacteria such as salmonella and listeria, as well as some viruses, including HIV-1, and fungal pathogens, such as candida. After the sugar is bound by the proteins, it activates the serine proteases, which then can cleave complement C2 and C4 into C2a, C2b, C4a and C4b respectively. Factors C4b and C2a (sometimes called C2b) can interact to form C3 convertase, which is identical in function to the C3 convertase formed by the alternative pathway, and it works to cleave C3 into C3a and C3b more quickly. Finally for this pathway, a molecule of C3b interacts with the preexisting C3 convertase complex, forming the C5 convertase complex that cleaves factor C5 into C5a and C5b.
The final pathway that leads to this point is the classical complement pathway. This pathway is activated by the binding of aggregated antibody-antigen complexes, as well as components of viral and bacterial cells such as lipopolysaccharides, to the C1q protein. C1q is part of the C1 complex, which also includes C1s and C1r. Binding of a substance to C1q causes a conformational change in C1r and C1s, allowing C1s to become an active protease, which then is able to cleave complement factors C2 and C4 into their a and b fragments, as in the lectin pathway. The remainder of the pathway is identical to that of the lectin pathway.
Finally, after cleavage of C5 into C5a and C5b by any of the pathways, complement componenets C6, 7, 8 and 9 can interact with component C5b in order to form the membrane attack complex. This complex attaches to the plasma membrane of pathogen cells, forming a hole in the membrane and allowing diffusion of molecules in the cell, and eventually cell death if enough attack complex form.
References
Complement Pathway References
Janeway, CA Jr; Travers P; Walport M; et al. The complement system and innate immunity. Immunobiology: The Immune System in Health and Disease. (2001). New York: Garland Science. Retrieved 25 February 2013.
Noris M, Remuzzi G: Overview of complement activation and regulation. Semin Nephrol. 2013 Nov;33(6):479-92. doi: 10.1016/j.semnephrol.2013.08.001.
Pubmed: 24161035
de Bruijn MH, Fey GH: Human complement component C3: cDNA coding sequence and derived primary structure. Proc Natl Acad Sci U S A. 1985 Feb;82(3):708-12. doi: 10.1073/pnas.82.3.708.
Pubmed: 2579379
Hugli TE: Human anaphylatoxin (C3a) from the third component of complement. Primary structure. J Biol Chem. 1975 Nov 10;250(21):8293-301.
Pubmed: 1238393
Oxvig C, Haaning J, Kristensen L, Wagner JM, Rubin I, Stigbrand T, Gleich GJ, Sottrup-Jensen L: Identification of angiotensinogen and complement C3dg as novel proteins binding the proform of eosinophil major basic protein in human pregnancy serum and plasma. J Biol Chem. 1995 Jun 9;270(23):13645-51. doi: 10.1074/jbc.270.23.13645.
Pubmed: 7539791
Klickstein LB, Bartow TJ, Miletic V, Rabson LD, Smith JA, Fearon DT: Identification of distinct C3b and C4b recognition sites in the human C3b/C4b receptor (CR1, CD35) by deletion mutagenesis. J Exp Med. 1988 Nov 1;168(5):1699-717. doi: 10.1084/jem.168.5.1699.
Pubmed: 2972794
Ulgiati D, Townend DC, Christiansen FT, Dawkins RL, Abraham LJ: Complete sequence of the complement C4 gene from the HLA-A1, B8, C4AQ0, C4B1, DR3 haplotype. Immunogenetics. 1996;43(4):250-2.
Pubmed: 8575831
Martinez-Quiles N, Paz-Artal E, Moreno-Pelayo MA, Longas J, Ferre-Lopez S, Rosal M, Arnaiz-Villena A: C4d DNA sequences of two infrequent human allotypes (C4A13 and C4B12) and the presence of signal sequences enhancing recombination. J Immunol. 1998 Oct 1;161(7):3438-43.
Pubmed: 9759862
Lopez-Goyanes A, Moreno MA, Ferre S, Paz-Artal E: C4d DNA sequence of complement C4B93 and recombination mechanisms for its generation. Tissue Antigens. 2004 Mar;63(3):260-2. doi: 10.1111/j.0001-2815.2004.00147.x.
Pubmed: 14989716
Yu CY: The complete exon-intron structure of a human complement component C4A gene. DNA sequences, polymorphism, and linkage to the 21-hydroxylase gene. J Immunol. 1991 Feb 1;146(3):1057-66.
Pubmed: 1988494
Sargent CA, Anderson MJ, Hsieh SL, Kendall E, Gomez-Escobar N, Campbell RD: Characterisation of the novel gene G11 lying adjacent to the complement C4A gene in the human major histocompatibility complex. Hum Mol Genet. 1994 Mar;3(3):481-8. doi: 10.1093/hmg/3.3.481.
Pubmed: 8012361
Haviland DL, Haviland JC, Fleischer DT, Hunt A, Wetsel RA: Complete cDNA sequence of human complement pro-C5. Evidence of truncated transcripts derived from a single copy gene. J Immunol. 1991 Jan 1;146(1):362-8.
Pubmed: 1984448
Wetsel RA, Lemons RS, Le Beau MM, Barnum SR, Noack D, Tack BF: Molecular analysis of human complement component C5: localization of the structural gene to chromosome 9. Biochemistry. 1988 Mar 8;27(5):1474-82. doi: 10.1021/bi00405a012.
Pubmed: 3365401
Fernandez HN, Hugli TE: Primary structural analysis of the polypeptide portion of human C5a anaphylatoxin. Polypeptide sequence determination and assignment of the oligosaccharide attachment site in C5a. J Biol Chem. 1978 Oct 10;253(19):6955-64.
Pubmed: 690134
